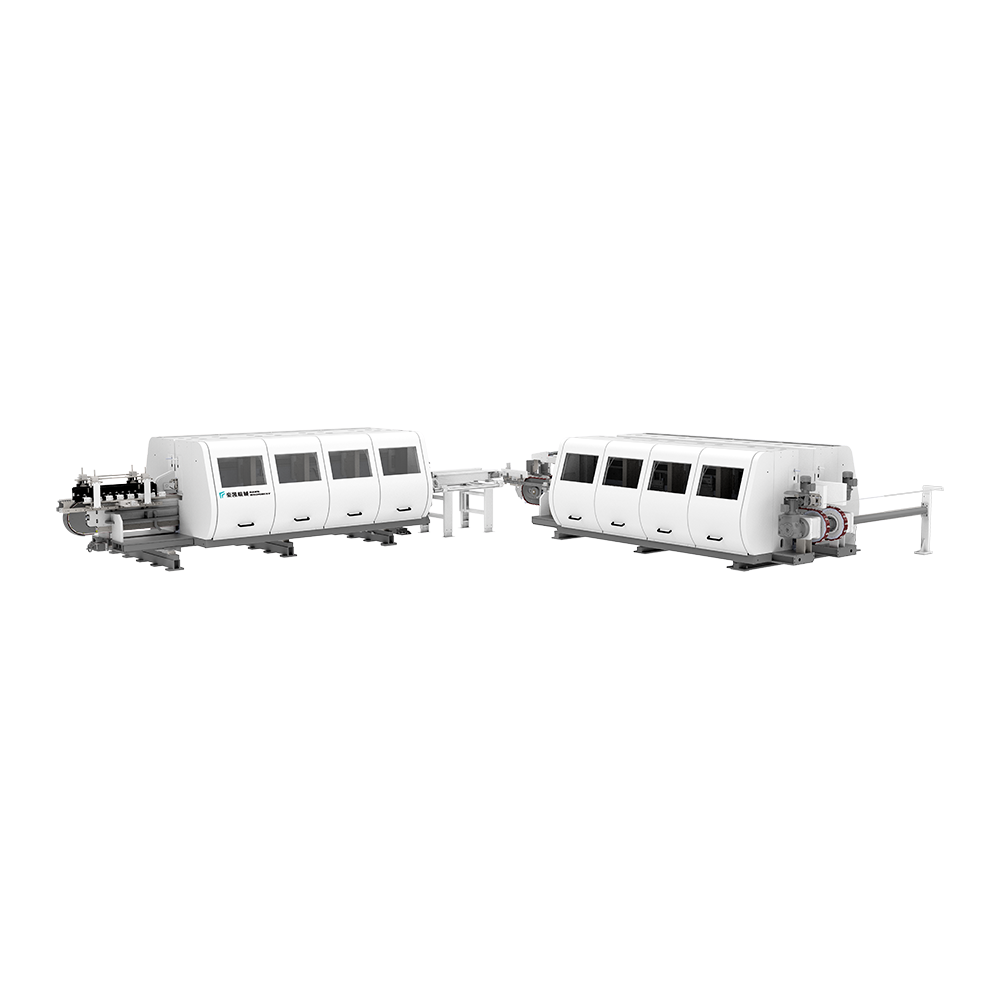

The product can slot the floor vertically and horizontally. The machine series covers the processing needs of the entire floor, all using stable and reliable rolling chain driving systems.
| Type | HKH556 Lengthwise | HKH557 Crosswise | HKH446 Lengthwise | HKH447 Crosswise | HKH336 Lengthwise | HKH337 Crosswise | |
| Max.Spindles | (PCS) | 10+10 | 10+10 | 8+8 | 8+8 | 6+6 | 6+6 |
| Feeding Speed | (m/min) | 5-150 | 5-60 | 5-120 | 5-50 | 5-80 | 5-40 |
| Width Range | (mm) | 125/1 1 5-600 | - | 125/115-600 | - | 125/115-600 | - |
| Length Range | (mm) | 450≤ | 400-1600/2500 | 450≤ | 400-1600/2500 | 450≤ | 400-1600/2500 |
| Floor thickness | (mm) | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 | 3-25 |
| Diameter of cutter | (mm) | φ 250-285 | φ 250-285 | φ 250-285 | φ 250-285 | φ 250-285 | φ 250-285 |
| Working height | (mm) | 1100 | 980 | 1100 | 980 | 1100 | 980 |
| Dimensions | (mm) | 8200x3000x2000 | 8200x3800x1 900 | 7200x3000x2000 | 7200x3800x1900 | 6200x3000x2000 | 6200x3800x1 900 |
| Machine weight | (T) | 16 | 16 | 14 | 14 | 12 | 12 |
